1.下载activiti-7.1.0.M6的源码包

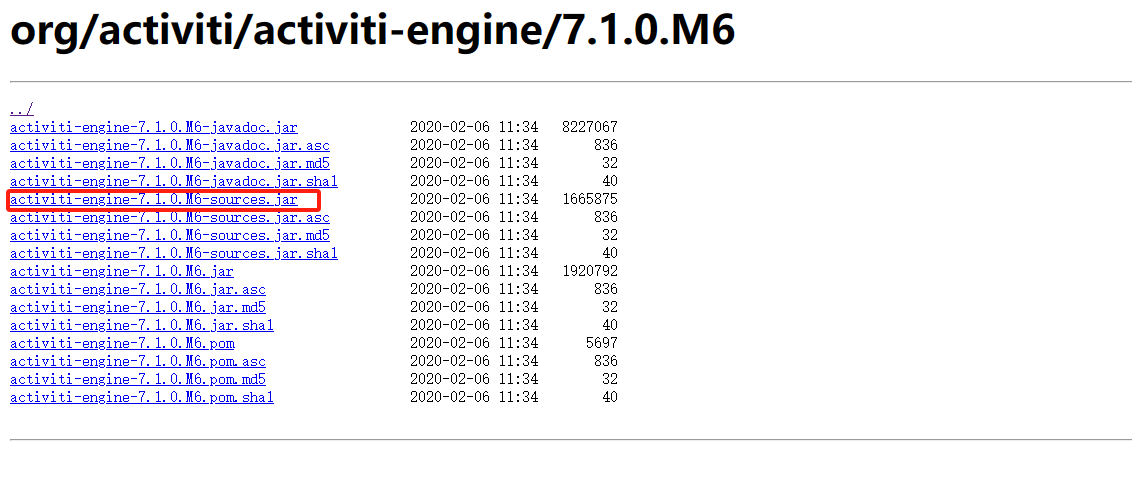

下载图中红框位置的jar包
2.打开方式
- 把下载的jar包解压之后，进入activiti-engine-7.1.0.M6-sources\META-INF\maven\org.activiti\activiti-engine目录下将pom文件拷贝到activiti-engine-7.1.0.M6-sources下，与org文件夹同目录下，然后把META-INF文件夹和源码的jar包一并删除。然后用idea打开工程文件（activiti-engine-7.1.0.M6-sources）。
2.1首次打开需修改工程文件的modules
- 按步骤依次点击，File->Project Structure,按照如下图中步骤依次执行。

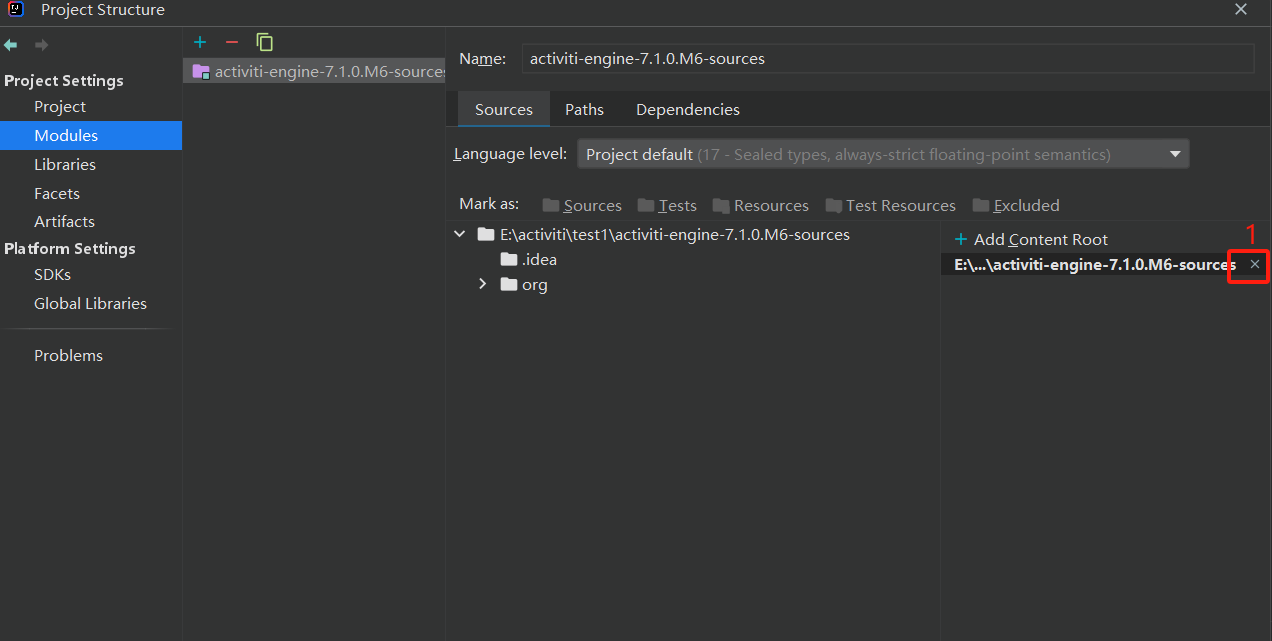

点击红框中的×，清除

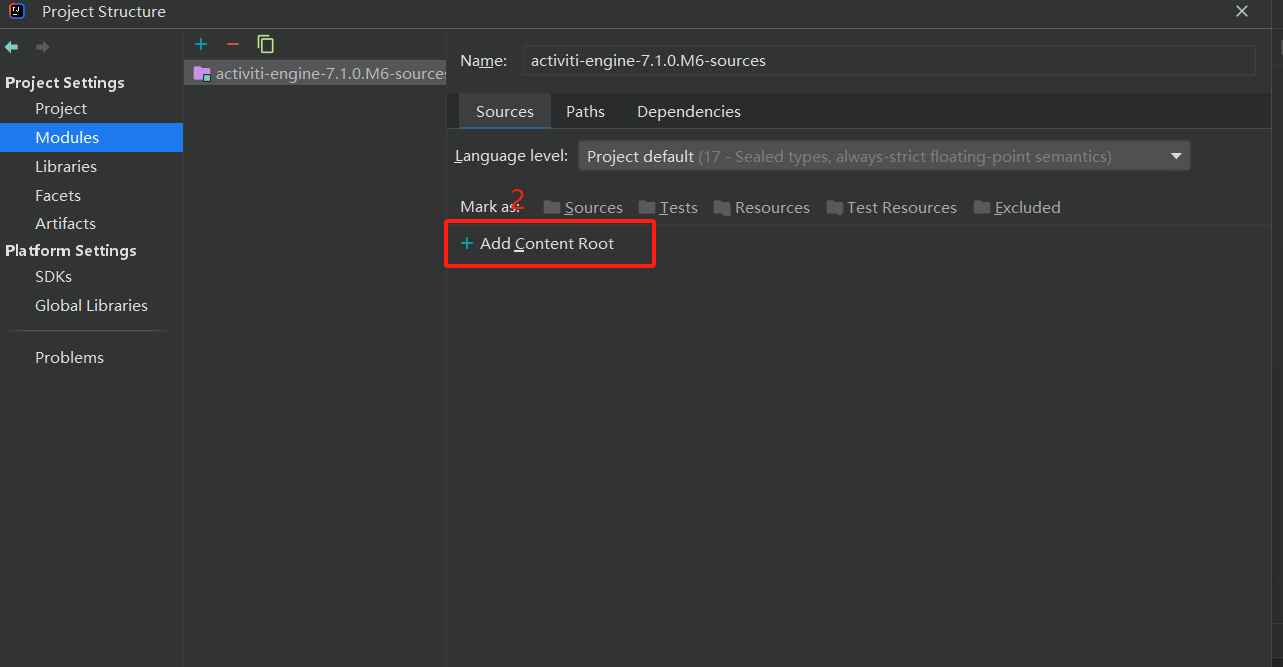

点击红框中的+号，选择你这个工程文件根目录所在的位置

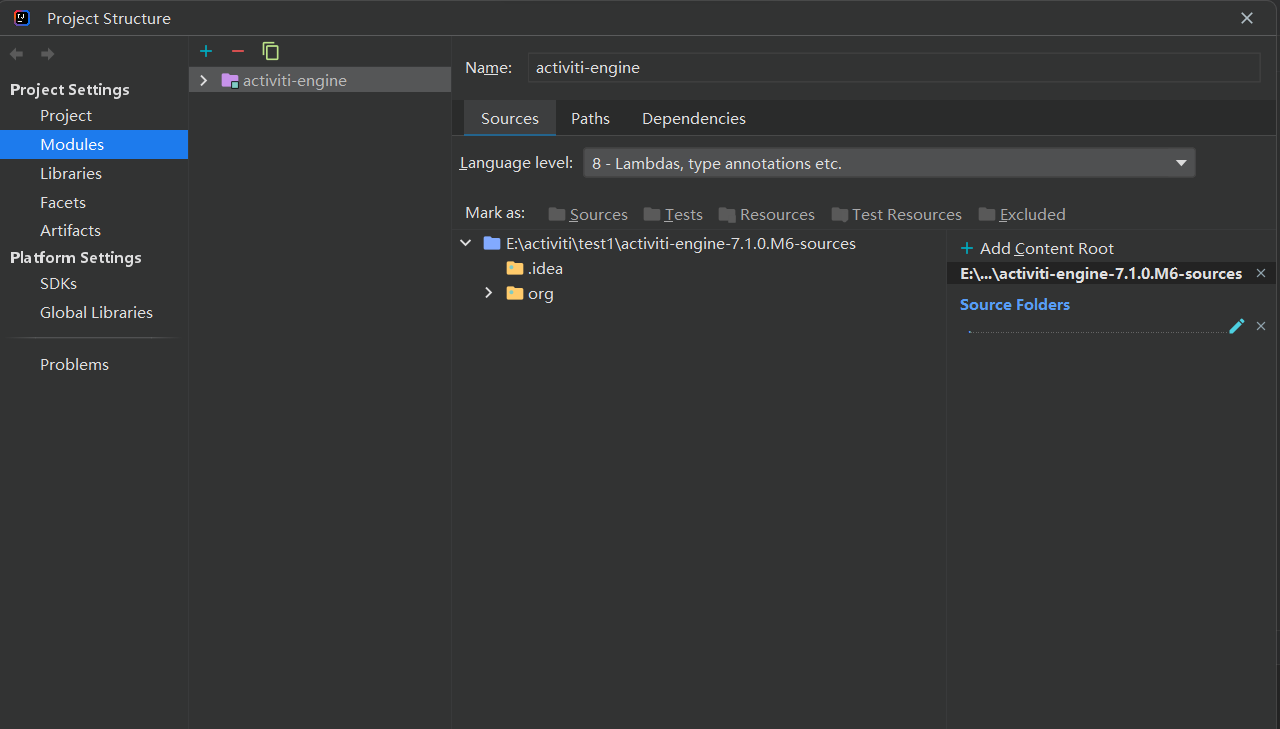

这是最后配好的界面
3.修改部分源码（添加国产数据库类型）
3.1在 org.activiti.engine.impl.cfg.ProcessEngineConfigurationImpl，增加成员变量
protected static Properties databaseTypeMappings = getDefaultDatabaseTypeMappings();
public static final String DATABASE_TYPE_H2 = "h2";
public static final String DATABASE_TYPE_HSQL = "hsql";
public static final String DATABASE_TYPE_MYSQL = "mysql";
public static final String DATABASE_TYPE_ORACLE = "oracle";
public static final String DATABASE_TYPE_POSTGRES = "postgres";
public static final String DATABASE_TYPE_MSSQL = "mssql";
public static final String DATABASE_TYPE_DB2 = "db2";
public static final String DATABASE_TYPE_KINGBASE = "kingbase";//金仓
3.2修改org.activiti.engine.impl.cfg.ProcessEngineConfigurationImpl 类的getDefaultDatabaseTypeMappings()方法
public static Properties getDefaultDatabaseTypeMappings() {
Properties databaseTypeMappings = new Properties();
databaseTypeMappings.setProperty("kingbase", DATABASE_TYPE_KINGBASE);//金仓
databaseTypeMappings.setProperty("H2", DATABASE_TYPE_H2);
databaseTypeMappings.setProperty("HSQL Database Engine", DATABASE_TYPE_HSQL);
databaseTypeMappings.setProperty("MySQL", DATABASE_TYPE_MYSQL);
databaseTypeMappings.setProperty("Oracle", DATABASE_TYPE_ORACLE);
databaseTypeMappings.setProperty("PostgreSQL", DATABASE_TYPE_POSTGRES);
databaseTypeMappings.setProperty("Microsoft SQL Server", DATABASE_TYPE_MSSQL);
databaseTypeMappings.setProperty(DATABASE_TYPE_DB2, DATABASE_TYPE_DB2);
databaseTypeMappings.setProperty("DB2",DATABASE_TYPE_DB2);
databaseTypeMappings.setProperty("DB2/NT", DATABASE_TYPE_DB2);
databaseTypeMappings.setProperty("DB2/NT64", DATABASE_TYPE_DB2);
databaseTypeMappings.setProperty("DB2 UDP", DATABASE_TYPE_DB2);
databaseTypeMappings.setProperty("DB2/LINUX", DATABASE_TYPE_DB2);
databaseTypeMappings.setProperty("DB2/LINUX390", DATABASE_TYPE_DB2);
databaseTypeMappings.setProperty("DB2/LINUXX8664", DATABASE_TYPE_DB2);
databaseTypeMappings.setProperty("DB2/LINUXZ64", DATABASE_TYPE_DB2);
databaseTypeMappings.setProperty("DB2/LINUXPPC64",DATABASE_TYPE_DB2);
databaseTypeMappings.setProperty("DB2/LINUXPPC64LE",DATABASE_TYPE_DB2);
databaseTypeMappings.setProperty("DB2/400 SQL", DATABASE_TYPE_DB2);
databaseTypeMappings.setProperty("DB2/6000", DATABASE_TYPE_DB2);
databaseTypeMappings.setProperty("DB2 UDB iSeries", DATABASE_TYPE_DB2);
databaseTypeMappings.setProperty("DB2/AIX64", DATABASE_TYPE_DB2);
databaseTypeMappings.setProperty("DB2/HPUX", DATABASE_TYPE_DB2);
databaseTypeMappings.setProperty("DB2/HP64", DATABASE_TYPE_DB2);
databaseTypeMappings.setProperty("DB2/SUN", DATABASE_TYPE_DB2);
databaseTypeMappings.setProperty("DB2/SUN64", DATABASE_TYPE_DB2);
databaseTypeMappings.setProperty("DB2/PTX", DATABASE_TYPE_DB2);
databaseTypeMappings.setProperty("DB2/2", DATABASE_TYPE_DB2);
databaseTypeMappings.setProperty("DB2 UDB AS400", DATABASE_TYPE_DB2);
return databaseTypeMappings;
}
3.3修改org.activiti.engine.impl.AbstractQuery 类的 addOrder(String column, String sortOrder, NullHandlingOnOrder nullHandlingOnOrder)方法
protected void addOrder(String column, String sortOrder, NullHandlingOnOrder nullHandlingOnOrder) {
if (orderBy == null) {
orderBy = "";
} else {
orderBy = orderBy + ", ";
}
String defaultOrderByClause = column + " " + sortOrder;
if (nullHandlingOnOrder != null) {
if (nullHandlingOnOrder.equals(NullHandlingOnOrder.NULLS_FIRST)) {
if (ProcessEngineConfigurationImpl.DATABASE_TYPE_H2.equals(databaseType)
|| ProcessEngineConfigurationImpl.DATABASE_TYPE_HSQL.equals(databaseType)
|| ProcessEngineConfigurationImpl.DATABASE_TYPE_POSTGRES.equals(databaseType)
|| ProcessEngineConfigurationImpl.DATABASE_TYPE_ORACLE.equals(databaseType)
|| ProcessEngineConfigurationImpl.DATABASE_TYPE_KINGBASE.equals(databaseType)//金仓
|| ProcessEngineConfigurationImpl.DATABASE_TYPE_DM.equals(databaseType) ) {//达梦
orderBy = orderBy + defaultOrderByClause + " NULLS FIRST";
} else if (ProcessEngineConfigurationImpl.DATABASE_TYPE_MYSQL.equals(databaseType)) {
orderBy = orderBy + "isnull(" + column + ") desc," + defaultOrderByClause;
} else if (ProcessEngineConfigurationImpl.DATABASE_TYPE_DB2.equals(databaseType) || ProcessEngineConfigurationImpl.DATABASE_TYPE_MSSQL.equals(databaseType)) {
orderBy = orderBy + "case when " + column + " is null then 0 else 1 end," + defaultOrderByClause;
} else {
orderBy = orderBy + defaultOrderByClause;
}
} else if (nullHandlingOnOrder.equals(NullHandlingOnOrder.NULLS_LAST)) {
if (ProcessEngineConfigurationImpl.DATABASE_TYPE_H2.equals(databaseType)
|| ProcessEngineConfigurationImpl.DATABASE_TYPE_HSQL.equals(databaseType)
|| ProcessEngineConfigurationImpl.DATABASE_TYPE_POSTGRES.equals(databaseType)
|| ProcessEngineConfigurationImpl.DATABASE_TYPE_ORACLE.equals(databaseType)
|| ProcessEngineConfigurationImpl.DATABASE_TYPE_KINGBASE.equals(databaseType)//金仓
|| ProcessEngineConfigurationImpl.DATABASE_TYPE_DM.equals(databaseType) ) {//达梦
orderBy = orderBy + column + " " + sortOrder + " NULLS LAST";
} else if (ProcessEngineConfigurationImpl.DATABASE_TYPE_MYSQL.equals(databaseType)) {
orderBy = orderBy + "isnull(" + column + ") asc," + defaultOrderByClause;
} else if (ProcessEngineConfigurationImpl.DATABASE_TYPE_DB2.equals(databaseType) || ProcessEngineConfigurationImpl.DATABASE_TYPE_MSSQL.equals(databaseType)) {
orderBy = orderBy + "case when " + column + " is null then 1 else 0 end," + defaultOrderByClause;
} else {
orderBy = orderBy + defaultOrderByClause;
}
}
} else {
orderBy = orderBy + defaultOrderByClause;
}
}
4.在db.create文件夹下创建数据库表相关的文件
4.1在create文件夹下创建数据库表相关的文件activiti.kingbase.create.engine.sql
create table ACT_GE_PROPERTY
(
NAME_ varchar(64),
VALUE_ varchar(300),
REV_ integer,
primary key (NAME_)
);
insert into ACT_GE_PROPERTY
values ('schema.version', '7.1.0.M6', 1);
insert into ACT_GE_PROPERTY
values ('schema.history', 'create(7.1.0.M6)', 1);
insert into ACT_GE_PROPERTY
values ('next.dbid', '1', 1);
create table ACT_GE_BYTEARRAY
(
ID_ varchar(64),
REV_ integer,
NAME_ varchar(255),
DEPLOYMENT_ID_ varchar(64),
BYTES_ bytea,
GENERATED_ boolean,
primary key (ID_)
);
create table ACT_RE_DEPLOYMENT
(
ID_ varchar(64),
NAME_ varchar(255),
CATEGORY_ varchar(255),
KEY_ varchar(255),
TENANT_ID_ varchar(255) default '',
DEPLOY_TIME_ timestamp,
ENGINE_VERSION_ varchar(255),
VERSION_ integer,
PROJECT_RELEASE_VERSION_ varchar(255),
primary key (ID_)
);
create table ACT_RE_MODEL
(
ID_ varchar(64) not null,
REV_ integer,
NAME_ varchar(255),
KEY_ varchar(255),
CATEGORY_ varchar(255),
CREATE_TIME_ timestamp,
LAST_UPDATE_TIME_ timestamp,
VERSION_ integer,
META_INFO_ varchar(4000),
DEPLOYMENT_ID_ varchar(64),
EDITOR_SOURCE_VALUE_ID_ varchar(64),
EDITOR_SOURCE_EXTRA_VALUE_ID_ varchar(64),
TENANT_ID_ varchar(255) default '',
primary key (ID_)
);
create table ACT_RU_EXECUTION
(
ID_ varchar(64),
REV_ integer,
PROC_INST_ID_ varchar(64),
BUSINESS_KEY_ varchar(255),
PARENT_ID_ varchar(64),
PROC_DEF_ID_ varchar(64),
SUPER_EXEC_ varchar(64),
ROOT_PROC_INST_ID_ varchar(64),
ACT_ID_ varchar(255),
IS_ACTIVE_ boolean,
IS_CONCURRENT_ boolean,
IS_SCOPE_ boolean,
IS_EVENT_SCOPE_ boolean,
IS_MI_ROOT_ boolean,
SUSPENSION_STATE_ integer,
CACHED_ENT_STATE_ integer,
TENANT_ID_ varchar(255) default '',
NAME_ varchar(255),
START_TIME_ timestamp,
START_USER_ID_ varchar(255),
LOCK_TIME_ timestamp,
IS_COUNT_ENABLED_ boolean,
EVT_SUBSCR_COUNT_ integer,
TASK_COUNT_ integer,
JOB_COUNT_ integer,
TIMER_JOB_COUNT_ integer,
SUSP_JOB_COUNT_ integer,
DEADLETTER_JOB_COUNT_ integer,
VAR_COUNT_ integer,
ID_LINK_COUNT_ integer,
primary key (ID_)
);
create table ACT_RU_JOB
(
ID_ varchar(64) NOT NULL,
REV_ integer,
TYPE_ varchar(255) NOT NULL,
LOCK_EXP_TIME_ timestamp,
LOCK_OWNER_ varchar(255),
EXCLUSIVE_ boolean,
EXECUTION_ID_ varchar(64),
PROCESS_INSTANCE_ID_ varchar(64),
PROC_DEF_ID_ varchar(64),
RETRIES_ integer,
EXCEPTION_STACK_ID_ varchar(64),
EXCEPTION_MSG_ varchar(4000),
DUEDATE_ timestamp,
REPEAT_ varchar(255),
HANDLER_TYPE_ varchar(255),
HANDLER_CFG_ varchar(4000),
TENANT_ID_ varchar(255) default '',
primary key (ID_)
);
create table ACT_RU_TIMER_JOB
(
ID_ varchar(64) NOT NULL,
REV_ integer,
TYPE_ varchar(255) NOT NULL,
LOCK_EXP_TIME_ timestamp,
LOCK_OWNER_ varchar(255),
EXCLUSIVE_ boolean,
EXECUTION_ID_ varchar(64),
PROCESS_INSTANCE_ID_ varchar(64),
PROC_DEF_ID_ varchar(64),
RETRIES_ integer,
EXCEPTION_STACK_ID_ varchar(64),
EXCEPTION_MSG_ varchar(4000),
DUEDATE_ timestamp,
REPEAT_ varchar(255),
HANDLER_TYPE_ varchar(255),
HANDLER_CFG_ varchar(4000),
TENANT_ID_ varchar(255) default '',
primary key (ID_)
);
create table ACT_RU_SUSPENDED_JOB
(
ID_ varchar(64) NOT NULL,
REV_ integer,
TYPE_ varchar(255) NOT NULL,
EXCLUSIVE_ boolean,
EXECUTION_ID_ varchar(64),
PROCESS_INSTANCE_ID_ varchar(64),
PROC_DEF_ID_ varchar(64),
RETRIES_ integer,
EXCEPTION_STACK_ID_ varchar(64),
EXCEPTION_MSG_ varchar(4000),
DUEDATE_ timestamp,
REPEAT_ varchar(255),
HANDLER_TYPE_ varchar(255),
HANDLER_CFG_ varchar(4000),
TENANT_ID_ varchar(255) default '',
primary key (ID_)
);
create table ACT_RU_DEADLETTER_JOB
(
ID_ varchar(64) NOT NULL,
REV_ integer,
TYPE_ varchar(255) NOT NULL,
EXCLUSIVE_ boolean,
EXECUTION_ID_ varchar(64),
PROCESS_INSTANCE_ID_ varchar(64),
PROC_DEF_ID_ varchar(64),
EXCEPTION_STACK_ID_ varchar(64),
EXCEPTION_MSG_ varchar(4000),
DUEDATE_ timestamp,
REPEAT_ varchar(255),
HANDLER_TYPE_ varchar(255),
HANDLER_CFG_ varchar(4000),
TENANT_ID_ varchar(255) default '',
primary key (ID_)
);
create table ACT_RE_PROCDEF
(
ID_ varchar(64) NOT NULL,
REV_ integer,
CATEGORY_ varchar(255),
NAME_ varchar(255),
KEY_ varchar(255) NOT NULL,
VERSION_ integer NOT NULL,
DEPLOYMENT_ID_ varchar(64),
RESOURCE_NAME_ varchar(4000),
DGRM_RESOURCE_NAME_ varchar(4000),
DESCRIPTION_ varchar(4000),
HAS_START_FORM_KEY_ boolean,
HAS_GRAPHICAL_NOTATION_ boolean,
SUSPENSION_STATE_ integer,
TENANT_ID_ varchar(255) default '',
ENGINE_VERSION_ varchar(255),
APP_VERSION_ integer,
primary key (ID_)
);
create table ACT_RU_TASK
(
ID_ varchar(64),
REV_ integer,
EXECUTION_ID_ varchar(64),
PROC_INST_ID_ varchar(64),
PROC_DEF_ID_ varchar(64),
NAME_ varchar(255),
PARENT_TASK_ID_ varchar(64),
DESCRIPTION_ varchar(4000),
TASK_DEF_KEY_ varchar(255),
OWNER_ varchar(255),
ASSIGNEE_ varchar(255),
DELEGATION_ varchar(64),
PRIORITY_ integer,
CREATE_TIME_ timestamp,
DUE_DATE_ timestamp,
CATEGORY_ varchar(255),
SUSPENSION_STATE_ integer,
TENANT_ID_ varchar(255) default '',
FORM_KEY_ varchar(255),
CLAIM_TIME_ timestamp,
primary key (ID_)
);
create table ACT_RU_IDENTITYLINK
(
ID_ varchar(64),
REV_ integer,
GROUP_ID_ varchar(255),
TYPE_ varchar(255),
USER_ID_ varchar(255),
TASK_ID_ varchar(64),
PROC_INST_ID_ varchar(64),
PROC_DEF_ID_ varchar(64),
primary key (ID_)
);
create table ACT_RU_VARIABLE
(
ID_ varchar(64) not null,
REV_ integer,
TYPE_ varchar(255) not null,
NAME_ varchar(255) not null,
EXECUTION_ID_ varchar(64),
PROC_INST_ID_ varchar(64),
TASK_ID_ varchar(64),
BYTEARRAY_ID_ varchar(64),
DOUBLE_ double precision,
LONG_ bigint,
TEXT_ varchar(4000),
TEXT2_ varchar(4000),
primary key (ID_)
);
create table ACT_RU_EVENT_SUBSCR
(
ID_ varchar(64) not null,
REV_ integer,
EVENT_TYPE_ varchar(255) not null,
EVENT_NAME_ varchar(255),
EXECUTION_ID_ varchar(64),
PROC_INST_ID_ varchar(64),
ACTIVITY_ID_ varchar(64),
CONFIGURATION_ varchar(255),
CREATED_ timestamp not null,
PROC_DEF_ID_ varchar(64),
TENANT_ID_ varchar(255) default '',
primary key (ID_)
);
create table ACT_EVT_LOG
(
LOG_NR_ SERIAL PRIMARY KEY,
TYPE_ varchar(64),
PROC_DEF_ID_ varchar(64),
PROC_INST_ID_ varchar(64),
EXECUTION_ID_ varchar(64),
TASK_ID_ varchar(64),
TIME_STAMP_ timestamp not null,
USER_ID_ varchar(255),
DATA_ bytea,
LOCK_OWNER_ varchar(255),
LOCK_TIME_ timestamp null,
IS_PROCESSED_ smallint default 0
);
create table ACT_PROCDEF_INFO
(
ID_ varchar(64) not null,
PROC_DEF_ID_ varchar(64) not null,
REV_ integer,
INFO_JSON_ID_ varchar(64),
primary key (ID_)
);
create table ACT_RU_INTEGRATION (
ID_ varchar(64) not null,
EXECUTION_ID_ varchar(64),
PROCESS_INSTANCE_ID_ varchar(64),
PROC_DEF_ID_ varchar(64),
FLOW_NODE_ID_ varchar(64),
CREATED_DATE_ timestamp,
primary key (ID_)
);
create index ACT_IDX_EXEC_BUSKEY on ACT_RU_EXECUTION (BUSINESS_KEY_);
create index ACT_IDX_EXE_ROOT on ACT_RU_EXECUTION (ROOT_PROC_INST_ID_);
create index ACT_IDX_TASK_CREATE on ACT_RU_TASK (CREATE_TIME_);
create index ACT_IDX_IDENT_LNK_USER on ACT_RU_IDENTITYLINK (USER_ID_);
create index ACT_IDX_IDENT_LNK_GROUP on ACT_RU_IDENTITYLINK (GROUP_ID_);
create index ACT_IDX_EVENT_SUBSCR_CONFIG_ on ACT_RU_EVENT_SUBSCR (CONFIGURATION_);
create index ACT_IDX_VARIABLE_TASK_ID on ACT_RU_VARIABLE (TASK_ID_);
create index ACT_IDX_BYTEAR_DEPL on ACT_GE_BYTEARRAY (DEPLOYMENT_ID_);
alter table ACT_GE_BYTEARRAY
add constraint ACT_FK_BYTEARR_DEPL
foreign key (DEPLOYMENT_ID_)
references ACT_RE_DEPLOYMENT (ID_);
alter table ACT_RE_PROCDEF
add constraint ACT_UNIQ_PROCDEF
unique (KEY_, VERSION_, TENANT_ID_);
create index ACT_IDX_EXE_PROCINST on ACT_RU_EXECUTION (PROC_INST_ID_);
alter table ACT_RU_EXECUTION
add constraint ACT_FK_EXE_PROCINST
foreign key (PROC_INST_ID_)
references ACT_RU_EXECUTION (ID_);
create index ACT_IDX_EXE_PARENT on ACT_RU_EXECUTION (PARENT_ID_);
alter table ACT_RU_EXECUTION
add constraint ACT_FK_EXE_PARENT
foreign key (PARENT_ID_)
references ACT_RU_EXECUTION (ID_);
create index ACT_IDX_EXE_SUPER on ACT_RU_EXECUTION (SUPER_EXEC_);
alter table ACT_RU_EXECUTION
add constraint ACT_FK_EXE_SUPER
foreign key (SUPER_EXEC_)
references ACT_RU_EXECUTION (ID_);
create index ACT_IDX_EXE_PROCDEF on ACT_RU_EXECUTION (PROC_DEF_ID_);
alter table ACT_RU_EXECUTION
add constraint ACT_FK_EXE_PROCDEF
foreign key (PROC_DEF_ID_)
references ACT_RE_PROCDEF (ID_);
create index ACT_IDX_TSKASS_TASK on ACT_RU_IDENTITYLINK (TASK_ID_);
alter table ACT_RU_IDENTITYLINK
add constraint ACT_FK_TSKASS_TASK
foreign key (TASK_ID_)
references ACT_RU_TASK (ID_);
create index ACT_IDX_ATHRZ_PROCEDEF on ACT_RU_IDENTITYLINK (PROC_DEF_ID_);
alter table ACT_RU_IDENTITYLINK
add constraint ACT_FK_ATHRZ_PROCEDEF
foreign key (PROC_DEF_ID_)
references ACT_RE_PROCDEF (ID_);
create index ACT_IDX_IDL_PROCINST on ACT_RU_IDENTITYLINK (PROC_INST_ID_);
alter table ACT_RU_IDENTITYLINK
add constraint ACT_FK_IDL_PROCINST
foreign key (PROC_INST_ID_)
references ACT_RU_EXECUTION (ID_);
create index ACT_IDX_TASK_EXEC on ACT_RU_TASK (EXECUTION_ID_);
alter table ACT_RU_TASK
add constraint ACT_FK_TASK_EXE
foreign key (EXECUTION_ID_)
references ACT_RU_EXECUTION (ID_);
create index ACT_IDX_TASK_PROCINST on ACT_RU_TASK (PROC_INST_ID_);
alter table ACT_RU_TASK
add constraint ACT_FK_TASK_PROCINST
foreign key (PROC_INST_ID_)
references ACT_RU_EXECUTION (ID_);
create index ACT_IDX_TASK_PROCDEF on ACT_RU_TASK (PROC_DEF_ID_);
alter table ACT_RU_TASK
add constraint ACT_FK_TASK_PROCDEF
foreign key (PROC_DEF_ID_)
references ACT_RE_PROCDEF (ID_);
create index ACT_IDX_VAR_EXE on ACT_RU_VARIABLE (EXECUTION_ID_);
alter table ACT_RU_VARIABLE
add constraint ACT_FK_VAR_EXE
foreign key (EXECUTION_ID_)
references ACT_RU_EXECUTION (ID_);
create index ACT_IDX_VAR_PROCINST on ACT_RU_VARIABLE (PROC_INST_ID_);
alter table ACT_RU_VARIABLE
add constraint ACT_FK_VAR_PROCINST
foreign key (PROC_INST_ID_)
references ACT_RU_EXECUTION (ID_);
create index ACT_IDX_VAR_BYTEARRAY on ACT_RU_VARIABLE (BYTEARRAY_ID_);
alter table ACT_RU_VARIABLE
add constraint ACT_FK_VAR_BYTEARRAY
foreign key (BYTEARRAY_ID_)
references ACT_GE_BYTEARRAY (ID_);
create index ACT_IDX_JOB_EXECUTION_ID on ACT_RU_JOB (EXECUTION_ID_);
alter table ACT_RU_JOB
add constraint ACT_FK_JOB_EXECUTION
foreign key (EXECUTION_ID_)
references ACT_RU_EXECUTION (ID_);
create index ACT_IDX_JOB_PROCESS_INSTANCE_ID on ACT_RU_JOB (PROCESS_INSTANCE_ID_);
alter table ACT_RU_JOB
add constraint ACT_FK_JOB_PROCESS_INSTANCE
foreign key (PROCESS_INSTANCE_ID_)
references ACT_RU_EXECUTION (ID_);
create index ACT_IDX_JOB_PROC_DEF_ID on ACT_RU_JOB (PROC_DEF_ID_);
alter table ACT_RU_JOB
add constraint ACT_FK_JOB_PROC_DEF
foreign key (PROC_DEF_ID_)
references ACT_RE_PROCDEF (ID_);
create index ACT_IDX_JOB_EXCEPTION on ACT_RU_JOB (EXCEPTION_STACK_ID_);
alter table ACT_RU_JOB
add constraint ACT_FK_JOB_EXCEPTION
foreign key (EXCEPTION_STACK_ID_)
references ACT_GE_BYTEARRAY (ID_);
create index ACT_IDX_TIMER_JOB_EXECUTION_ID on ACT_RU_TIMER_JOB (EXECUTION_ID_);
alter table ACT_RU_TIMER_JOB
add constraint ACT_FK_TIMER_JOB_EXECUTION
foreign key (EXECUTION_ID_)
references ACT_RU_EXECUTION (ID_);
create index ACT_IDX_TIMER_JOB_PROCESS_INSTANCE_ID on ACT_RU_TIMER_JOB (PROCESS_INSTANCE_ID_);
alter table ACT_RU_TIMER_JOB
add constraint ACT_FK_TIMER_JOB_PROCESS_INSTANCE
foreign key (PROCESS_INSTANCE_ID_)
references ACT_RU_EXECUTION (ID_);
create index ACT_IDX_TIMER_JOB_PROC_DEF_ID on ACT_RU_TIMER_JOB (PROC_DEF_ID_);
alter table ACT_RU_TIMER_JOB
add constraint ACT_FK_TIMER_JOB_PROC_DEF
foreign key (PROC_DEF_ID_)
references ACT_RE_PROCDEF (ID_);
create index ACT_IDX_TIMER_JOB_EXCEPTION on ACT_RU_TIMER_JOB (EXCEPTION_STACK_ID_);
alter table ACT_RU_TIMER_JOB
add constraint ACT_FK_TIMER_JOB_EXCEPTION
foreign key (EXCEPTION_STACK_ID_)
references ACT_GE_BYTEARRAY (ID_);
create index ACT_IDX_SUSPENDED_JOB_EXECUTION_ID on ACT_RU_SUSPENDED_JOB (EXECUTION_ID_);
alter table ACT_RU_SUSPENDED_JOB
add constraint ACT_FK_SUSPENDED_JOB_EXECUTION
foreign key (EXECUTION_ID_)
references ACT_RU_EXECUTION (ID_);
create index ACT_IDX_SUSPENDED_JOB_PROCESS_INSTANCE_ID on ACT_RU_SUSPENDED_JOB (PROCESS_INSTANCE_ID_);
alter table ACT_RU_SUSPENDED_JOB
add constraint ACT_FK_SUSPENDED_JOB_PROCESS_INSTANCE
foreign key (PROCESS_INSTANCE_ID_)
references ACT_RU_EXECUTION (ID_);
create index ACT_IDX_SUSPENDED_JOB_PROC_DEF_ID on ACT_RU_SUSPENDED_JOB (PROC_DEF_ID_);
alter table ACT_RU_SUSPENDED_JOB
add constraint ACT_FK_SUSPENDED_JOB_PROC_DEF
foreign key (PROC_DEF_ID_)
references ACT_RE_PROCDEF (ID_);
create index ACT_IDX_SUSPENDED_JOB_EXCEPTION on ACT_RU_SUSPENDED_JOB (EXCEPTION_STACK_ID_);
alter table ACT_RU_SUSPENDED_JOB
add constraint ACT_FK_SUSPENDED_JOB_EXCEPTION
foreign key (EXCEPTION_STACK_ID_)
references ACT_GE_BYTEARRAY (ID_);
create index ACT_IDX_DEADLETTER_JOB_EXECUTION_ID on ACT_RU_DEADLETTER_JOB (EXECUTION_ID_);
alter table ACT_RU_DEADLETTER_JOB
add constraint ACT_FK_DEADLETTER_JOB_EXECUTION
foreign key (EXECUTION_ID_)
references ACT_RU_EXECUTION (ID_);
create index ACT_IDX_DEADLETTER_JOB_PROCESS_INSTANCE_ID on ACT_RU_DEADLETTER_JOB (PROCESS_INSTANCE_ID_);
alter table ACT_RU_DEADLETTER_JOB
add constraint ACT_FK_DEADLETTER_JOB_PROCESS_INSTANCE
foreign key (PROCESS_INSTANCE_ID_)
references ACT_RU_EXECUTION (ID_);
create index ACT_IDX_DEADLETTER_JOB_PROC_DEF_ID on ACT_RU_DEADLETTER_JOB (PROC_DEF_ID_);
alter table ACT_RU_DEADLETTER_JOB
add constraint ACT_FK_DEADLETTER_JOB_PROC_DEF
foreign key (PROC_DEF_ID_)
references ACT_RE_PROCDEF (ID_);
create index ACT_IDX_DEADLETTER_JOB_EXCEPTION on ACT_RU_DEADLETTER_JOB (EXCEPTION_STACK_ID_);
alter table ACT_RU_DEADLETTER_JOB
add constraint ACT_FK_DEADLETTER_JOB_EXCEPTION
foreign key (EXCEPTION_STACK_ID_)
references ACT_GE_BYTEARRAY (ID_);
create index ACT_IDX_EVENT_SUBSCR on ACT_RU_EVENT_SUBSCR (EXECUTION_ID_);
alter table ACT_RU_EVENT_SUBSCR
add constraint ACT_FK_EVENT_EXEC
foreign key (EXECUTION_ID_)
references ACT_RU_EXECUTION (ID_);
create index ACT_IDX_MODEL_SOURCE on ACT_RE_MODEL (EDITOR_SOURCE_VALUE_ID_);
alter table ACT_RE_MODEL
add constraint ACT_FK_MODEL_SOURCE
foreign key (EDITOR_SOURCE_VALUE_ID_)
references ACT_GE_BYTEARRAY (ID_);
create index ACT_IDX_MODEL_SOURCE_EXTRA on ACT_RE_MODEL (EDITOR_SOURCE_EXTRA_VALUE_ID_);
alter table ACT_RE_MODEL
add constraint ACT_FK_MODEL_SOURCE_EXTRA
foreign key (EDITOR_SOURCE_EXTRA_VALUE_ID_)
references ACT_GE_BYTEARRAY (ID_);
create index ACT_IDX_MODEL_DEPLOYMENT on ACT_RE_MODEL (DEPLOYMENT_ID_);
alter table ACT_RE_MODEL
add constraint ACT_FK_MODEL_DEPLOYMENT
foreign key (DEPLOYMENT_ID_)
references ACT_RE_DEPLOYMENT (ID_);
create index ACT_IDX_PROCDEF_INFO_JSON on ACT_PROCDEF_INFO (INFO_JSON_ID_);
alter table ACT_PROCDEF_INFO
add constraint ACT_FK_INFO_JSON_BA
foreign key (INFO_JSON_ID_)
references ACT_GE_BYTEARRAY (ID_);
create index ACT_IDX_PROCDEF_INFO_PROC on ACT_PROCDEF_INFO (PROC_DEF_ID_);
alter table ACT_PROCDEF_INFO
add constraint ACT_FK_INFO_PROCDEF
foreign key (PROC_DEF_ID_)
references ACT_RE_PROCDEF (ID_);
alter table ACT_PROCDEF_INFO
add constraint ACT_UNIQ_INFO_PROCDEF
unique (PROC_DEF_ID_);
alter table ACT_RU_INTEGRATION
add constraint ACT_FK_INT_EXECUTION
foreign key (EXECUTION_ID_)
references ACT_RU_EXECUTION (ID_)
on delete cascade;
alter table ACT_RU_INTEGRATION
add constraint ACT_FK_INT_PROC_INST
foreign key (PROCESS_INSTANCE_ID_)
references ACT_RU_EXECUTION (ID_);
alter table ACT_RU_INTEGRATION
add constraint ACT_FK_INT_PROC_DEF
foreign key (PROC_DEF_ID_)
references ACT_RE_PROCDEF (ID_);
4.2在create文件夹下创建数据库表相关的文件activiti.kingbase.create.history.sql
create table ACT_HI_PROCINST (
ID_ varchar(64) not null,
PROC_INST_ID_ varchar(64) not null,
BUSINESS_KEY_ varchar(255),
PROC_DEF_ID_ varchar(64) not null,
START_TIME_ timestamp not null,
END_TIME_ timestamp,
DURATION_ bigint,
START_USER_ID_ varchar(255),
START_ACT_ID_ varchar(255),
END_ACT_ID_ varchar(255),
SUPER_PROCESS_INSTANCE_ID_ varchar(64),
DELETE_REASON_ varchar(4000),
TENANT_ID_ varchar(255) default '',
NAME_ varchar(255),
primary key (ID_),
unique (PROC_INST_ID_)
);
create table ACT_HI_ACTINST (
ID_ varchar(64) not null,
PROC_DEF_ID_ varchar(64) not null,
PROC_INST_ID_ varchar(64) not null,
EXECUTION_ID_ varchar(64) not null,
ACT_ID_ varchar(255) not null,
TASK_ID_ varchar(64),
CALL_PROC_INST_ID_ varchar(64),
ACT_NAME_ varchar(255),
ACT_TYPE_ varchar(255) not null,
ASSIGNEE_ varchar(255),
START_TIME_ timestamp not null,
END_TIME_ timestamp,
DURATION_ bigint,
DELETE_REASON_ varchar(4000),
TENANT_ID_ varchar(255) default '',
primary key (ID_)
);
create table ACT_HI_TASKINST (
ID_ varchar(64) not null,
PROC_DEF_ID_ varchar(64),
TASK_DEF_KEY_ varchar(255),
PROC_INST_ID_ varchar(64),
EXECUTION_ID_ varchar(64),
NAME_ varchar(255),
PARENT_TASK_ID_ varchar(64),
DESCRIPTION_ varchar(4000),
OWNER_ varchar(255),
ASSIGNEE_ varchar(255),
START_TIME_ timestamp not null,
CLAIM_TIME_ timestamp,
END_TIME_ timestamp,
DURATION_ bigint,
DELETE_REASON_ varchar(4000),
PRIORITY_ integer,
DUE_DATE_ timestamp,
FORM_KEY_ varchar(255),
CATEGORY_ varchar(255),
TENANT_ID_ varchar(255) default '',
primary key (ID_)
);
create table ACT_HI_VARINST (
ID_ varchar(64) not null,
PROC_INST_ID_ varchar(64),
EXECUTION_ID_ varchar(64),
TASK_ID_ varchar(64),
NAME_ varchar(255) not null,
VAR_TYPE_ varchar(100),
REV_ integer,
BYTEARRAY_ID_ varchar(64),
DOUBLE_ double precision,
LONG_ bigint,
TEXT_ varchar(4000),
TEXT2_ varchar(4000),
CREATE_TIME_ timestamp,
LAST_UPDATED_TIME_ timestamp,
primary key (ID_)
);
create table ACT_HI_DETAIL (
ID_ varchar(64) not null,
TYPE_ varchar(255) not null,
PROC_INST_ID_ varchar(64),
EXECUTION_ID_ varchar(64),
TASK_ID_ varchar(64),
ACT_INST_ID_ varchar(64),
NAME_ varchar(255) not null,
VAR_TYPE_ varchar(64),
REV_ integer,
TIME_ timestamp not null,
BYTEARRAY_ID_ varchar(64),
DOUBLE_ double precision,
LONG_ bigint,
TEXT_ varchar(4000),
TEXT2_ varchar(4000),
primary key (ID_)
);
create table ACT_HI_COMMENT (
ID_ varchar(64) not null,
TYPE_ varchar(255),
TIME_ timestamp not null,
USER_ID_ varchar(255),
TASK_ID_ varchar(64),
PROC_INST_ID_ varchar(64),
ACTION_ varchar(255),
MESSAGE_ varchar(4000),
FULL_MSG_ bytea,
primary key (ID_)
);
create table ACT_HI_ATTACHMENT (
ID_ varchar(64) not null,
REV_ integer,
USER_ID_ varchar(255),
NAME_ varchar(255),
DESCRIPTION_ varchar(4000),
TYPE_ varchar(255),
TASK_ID_ varchar(64),
PROC_INST_ID_ varchar(64),
URL_ varchar(4000),
CONTENT_ID_ varchar(64),
TIME_ timestamp,
primary key (ID_)
);
create table ACT_HI_IDENTITYLINK (
ID_ varchar(64),
GROUP_ID_ varchar(255),
TYPE_ varchar(255),
USER_ID_ varchar(255),
TASK_ID_ varchar(64),
PROC_INST_ID_ varchar(64),
primary key (ID_)
);
create index ACT_IDX_HI_PRO_INST_END on ACT_HI_PROCINST(END_TIME_);
create index ACT_IDX_HI_PRO_I_BUSKEY on ACT_HI_PROCINST(BUSINESS_KEY_);
create index ACT_IDX_HI_ACT_INST_START on ACT_HI_ACTINST(START_TIME_);
create index ACT_IDX_HI_ACT_INST_END on ACT_HI_ACTINST(END_TIME_);
create index ACT_IDX_HI_DETAIL_PROC_INST on ACT_HI_DETAIL(PROC_INST_ID_);
create index ACT_IDX_HI_DETAIL_ACT_INST on ACT_HI_DETAIL(ACT_INST_ID_);
create index ACT_IDX_HI_DETAIL_TIME on ACT_HI_DETAIL(TIME_);
create index ACT_IDX_HI_DETAIL_NAME on ACT_HI_DETAIL(NAME_);
create index ACT_IDX_HI_DETAIL_TASK_ID on ACT_HI_DETAIL(TASK_ID_);
create index ACT_IDX_HI_PROCVAR_PROC_INST on ACT_HI_VARINST(PROC_INST_ID_);
create index ACT_IDX_HI_PROCVAR_NAME_TYPE on ACT_HI_VARINST(NAME_, VAR_TYPE_);
create index ACT_IDX_HI_PROCVAR_TASK_ID on ACT_HI_VARINST(TASK_ID_);
create index ACT_IDX_HI_ACT_INST_PROCINST on ACT_HI_ACTINST(PROC_INST_ID_, ACT_ID_);
create index ACT_IDX_HI_ACT_INST_EXEC on ACT_HI_ACTINST(EXECUTION_ID_, ACT_ID_);
create index ACT_IDX_HI_IDENT_LNK_USER on ACT_HI_IDENTITYLINK(USER_ID_);
create index ACT_IDX_HI_IDENT_LNK_TASK on ACT_HI_IDENTITYLINK(TASK_ID_);
create index ACT_IDX_HI_IDENT_LNK_PROCINST on ACT_HI_IDENTITYLINK(PROC_INST_ID_);
create index ACT_IDX_HI_TASK_INST_PROCINST on ACT_HI_TASKINST(PROC_INST_ID_);
5.在db.drop目录中创建删除数据库表的文件
5.1在drop目录中创建删除数据库表的文件 activiti.kingbase.drop.engine.sql
drop table if exists ACT_GE_PROPERTY cascade;
drop table if exists ACT_GE_BYTEARRAY cascade;
drop table if exists ACT_RE_DEPLOYMENT cascade;
drop table if exists ACT_RE_MODEL cascade;
drop table if exists ACT_RE_PROCDEF cascade;
drop table if exists ACT_RU_EXECUTION cascade;
drop table if exists ACT_RU_JOB cascade;
drop table if exists ACT_RU_TIMER_JOB cascade;
drop table if exists ACT_RU_SUSPENDED_JOB cascade;
drop table if exists ACT_RU_DEADLETTER_JOB cascade;
drop table if exists ACT_RU_TASK cascade;
drop table if exists ACT_RU_IDENTITYLINK cascade;
drop table if exists ACT_RU_INTEGRATION cascade;
drop table if exists ACT_RU_VARIABLE cascade;
drop table if exists ACT_RU_EVENT_SUBSCR cascade;
drop table if exists ACT_EVT_LOG cascade;
drop table if exists ACT_PROCDEF_INFO cascade;
5.2在drop目录中创建删除数据库表的文件 activiti.kingbase.drop.history.sql
drop table if exists ACT_HI_PROCINST cascade;
drop table if exists ACT_HI_ACTINST cascade;
drop table if exists ACT_HI_VARINST cascade;
drop table if exists ACT_HI_TASKINST cascade;
drop table if exists ACT_HI_DETAIL cascade;
drop table if exists ACT_HI_COMMENT cascade;
drop table if exists ACT_HI_ATTACHMENT cascade;
drop table if exists ACT_HI_IDENTITYLINK cascade;
6.在db.properties目录中追加数据库相关配置文件
6.1在properties目录中追加人大金仓数据库配置文件kingbase.properties
limitAfter=LIMIT #{maxResults} OFFSET #{firstResult}
blobType=BINARY
7.替换activiti-engine-7.1.0.M6.jar

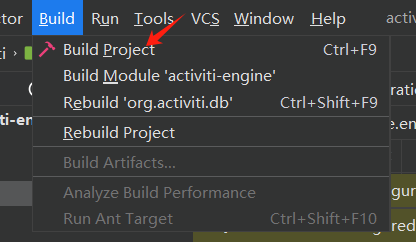

7.1编译项目
完成上述步骤之后，点击红框编译项目

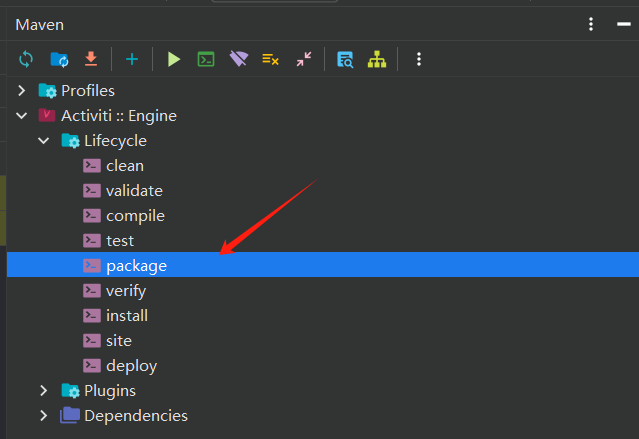

7.2打包项目
点击红框打包项目，打成可执行的jar包文件，路径在项目的target目录中
7.3把项目注进maven仓库中
- 这里只介绍注进本地maven仓库中，如果你有maven私库，这一步请按照你自己的方法打进私库。
- 进入命令行终端，cd到你项目的target目录下，执行下面的命令
mvn install:install-file -DgroupId=org.activiti -DartifactId=activiti-engine -Dversion=7.1.0.M6 -Dpackaging=jar -Dfile=activiti-engine-7.1.0.M6.jar
- 感谢你赐予我前进的力量
-
微信
支付宝
赞赏者名单
因为你们的支持让我意识到写文章的价值🙏
本文是原创文章，采用 CC BY-NC-ND 4.0 协议，完整转载请注明来自 程序员橙子
阅读建议
评论
匿名评论
隐私政策
你无需删除空行，直接评论以获取最佳展示效果
